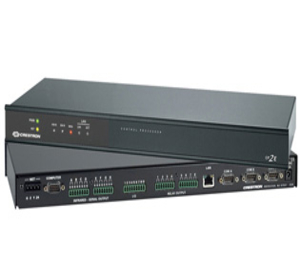

Crestron MC2E Compact Control System with Ethernet -Professional Media Controller
Key Features
- 2-Series engine | Dual-bus architecture
- Cresnet port – master/slave selectable
- 10/100 Ethernet | SSL encryption
- e-Control 2 and RoomView enabled | SNMP support
- 2 Com ports (RS-232/422/485)
- 4 IR/serial ports
- 4 Versiport I/O ports
- 4 Low-voltage relay ports
- IR wireless compatible using CNXRMIRD
- External power pack included
- Single-space EIA rack-mountable
| Memory | ||
| SDRAM | 32 MB | |
| NVRAM | 256 KB | |
| Flash | 4 MB | |
| Operating System | ||
| Real-time, preemptive multi-threaded/multitasking kernel; FAT32 file system with long names; supports SIMPL Windows™ and SIMPL+® | ||
| Ethernet | ||
| 10/100BaseT, auto-negotiating, full/half duplex, static IP or DHCP/DNS, SSL, TCP/IP, UDP/IP, CIP, SMTP, SNMP, built-in Web server and e-mail client; supports Crestron e-Control®2 XPanel and RoomView™ applications | ||
| Connectors | ||
| COM A – B | (2) DB9 male, bidirectional RS-232/422/485 ports; Up to 115.2k baud; Hardware and software handshaking support; All ports support C2N-NPA8 Network Poll Accelerator |
|
| INFRARED-SERIAL OUTPUT A – D | (4) 2-pin 3.5mm detachable terminal blocks, IR/Serial output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud; Individual signal generator per port, allowing simultaneous firing of all ports |
|
| I/O Versiports 1 – 4 | (1) 5-pin 3.5mm detachable terminal block comprising (4) digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.24 Volts DC; Digital Output: 250mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads; Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 20k ohms; Programmable 5 Volts, 2k ohms pull-up resistor per pin |
|
| RELAY OUTPUT 1 – 4 | (1) 8-pin 3.5mm detachable terminal block comprising (4) normally open, isolated relays; Rated 1 Amp, 30 Volts AC/DC; MOV arc suppression across contacts |
|
| IR IN | (1) 3-pin 3.5mm detachable terminal block; For connection of the CNXRMIRD IR Receiver (sold separately); Allows IR wireless control from Crestron or third-party remotes using RC-5 IR commands |
|
| LAN | (1) 8-wire RJ45 with 2 LED indicators; 10/100BaseT Ethernet port; Green LED indicates link status; Yellow LED indicates Ethernet activity |
|
| COMPUTER | (1) DB9 female, RS-232 computer console port | |
| NET | (1) 4-pin 3.5mm detachable terminal block; Cresnet port, Master/Slave selectable; Expandable via C2N-NPA8 Network Poll Accelerator |
|
| 24VDC | (1) 2.1mm barrel DC power jack, 24 Volt DC power input; (PW-2420RU power pack included); Passes through to NET port to power Cresnet devices |
|
| Reset Buttons | ||
| HW-R | Hardware reset (reboots the control system) | |
| SW-R | Software reset (restarts the SIMPL program) | |
| LED Indicators | ||
| PWR | (1 green) Indicates DC power supplied to unit | |
| NET | (1 yellow) Indicates Cresnet bus activity | |
| MSG | (1 red) Indicates control system has generated an error message | |
| LNK | (1 red) Indicates a valid connection on LAN port | |
| ACT | (1 red) Indicates activity on LAN port | |
| Power Requirements | ||
| Power Pack | 2.0 Amps @ 24 Volts DC; 100-240 Volts AC, 50/60 Hz power pack, model PW-2420RU included |
|
| Available Cresnet Power | 38 Watts using PW-2420RU power pack (included) | |
| Cresnet Power Usage | 12 Watts (0.5 Amp @ 24 Volts DC) using Cresnet network power (no power pack connected to the 24VDC connector) | |
| Environmental | ||
| Temperature | 41° to 113°F (5° to 45°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| Chassis | Metal, black matte finish | |
| Faceplate | Extruded aluminum, black matte finish with polycarbonate label overlay | |
| Mounting | Freestanding or 1U 19-inch rack-mountable (adhesive feet and rack ears included) | |
| Dimensions | ||
| Height | 1.80 in (46 mm); 1.70 in (44 mm) without feet |
|
| Width | 17.03 in (433 mm); 19.0 in (483 mm) with ears |
|
| Depth | 8.65 in (220 mm) | |
| Weight | ||
| 4.3 lbs (2.0 kg) | ||
