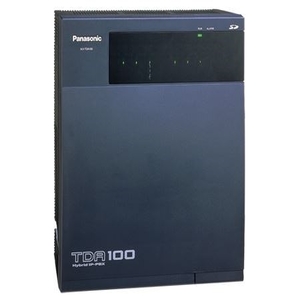

Panasonic KX-TDA100 Hybrid IP-PBX – Ideal for 25 to 65 users, Voice-Over IP Compatible

KX-TDA100 System Capacity:

• Maximum CO (POTS) Lines: 96
• Maximum PRI Channels: 92 (4 Cards)
• Maximum T-1 Channels: 96 (4 Cards)
• Maximum IP Gateway Trunks (IP-GW4): 16 Channels (4 Cards)
• Maximum IP Gateway Trunks (IP-GW16): 64 Channels (4 Cards)
• Maximum Digital Extensions: 64 (128 with DXDP, Not Recommended with all sites)
• Maximum Analog Proprietary Extensions (KX-T7700 Series Phones): 24
• Maximum Single Line Telephones: 96
• Maximum IP Phones: 96
• Maximum Cell Stations: 32
• Maximum Wireless Phones: 128
• Maximum Door Phones: 16

KX-TDA100 Features:

• PC Based Programming
• T-1 or PRI Interface
• Caller ID Option
• Call Logging- Incoming and Outgoing Numbers
• Voice over IP Capabilities
  o Voice over IP Remote Phones
  o Ability to Connect Multiple Sites via Gateway Cards
  o Softphone Option
• Voice Mail Integration with Auto Attendant
• Centralized Voicemail Option with KX-TVA Voicemail System
• Works with KX-T7000, KX-T7200, KX-T7400, KX-T7600, KX-T7700, DT300 Series Phones and Single Line Telephones
• Compatible with the NT300 Series, NT136, and NT265 IP Phones
• Direct Inward System Access with Outgoing Message (DISA with OGM)
• Incoming Call Distribution
• Uniform Call Distribution
• Toll Restriction
• Personal Speed Dial Numbers
• Music on Hold/ Background Music Inputs
• External Paging Outputs
• USB Connection
• RS232 Output
• Ethernet Connection for CTI
• Bluetooth Compatible Phones
• Up to 30 Different Ring Tones
• Call Forwarding
• Conference Calling- 8 Parties
• Hotel/ Motel Features
• Off Hook Call Announce
• Part Number: KX-TDA100
