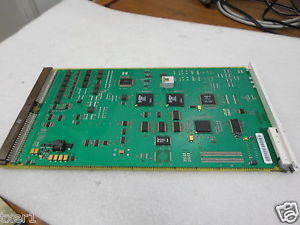

Avaya MAINTENANCE/TEST Board - TN771DP TN771DP

TN771DP Maintenance and Test

The TN771DP maintenance test circuit pack performs maintenance functions. These functions include packet bus reconfiguration that allows diagnosis and correction of recoverable packet bus failures before the link access procedure on the D-channel (LAPD) links fail. LAPD is a link-layer protocol on the ISDN-BRI and ISDN-PRI data link layer (level 2). LAPD provides data transfer between two devices and error and flow control on multiple logical links. LAPD swaps spare leads with the malfunctioning leads to recover packet bus failures involving up to three malfunctioning leads (1 or 2 data or parity leads and?one control lead).

Other maintenance functions include ISDN-PRI testing that originates and terminates loopback tests on ISDN facilities. The testing provides bit and block error rate information indicating ISDN facility quality.

The TN771DP circuit pack can be updated using the firmware download feature, which requires use of the TN799 C-LAN circuit pack interface.

A TN771DP circuit pack is required:

• Any CSI system that is using a TN2198 BRI circuit pack. Otherwise, a TN771DP circuit pack is not required.
• An SI system PPN that is equipped with packet endpoints (ISDN-BRI lines or trunks, ISDN-PRI trunks, IP trunks, IP stations, ATM-CES, and ASAI) or is a critical reliability or fully duplicated system. A critical-reliability or fully duplicated system with packet endpoints requires a TN771DP circuit pack in each EPN. Otherwise, a TN771DP circuit pack is not required.
• All R system PPNs. A critical-reliability R system requires a TN771DP circuit pack in each EPN. An R system with ATM network duplication requires a TN771DP circuit pack in each PPN and EPN.
• All CSI models when using a TN2198 BRI circuit pack
